AL 100U-01 / 02

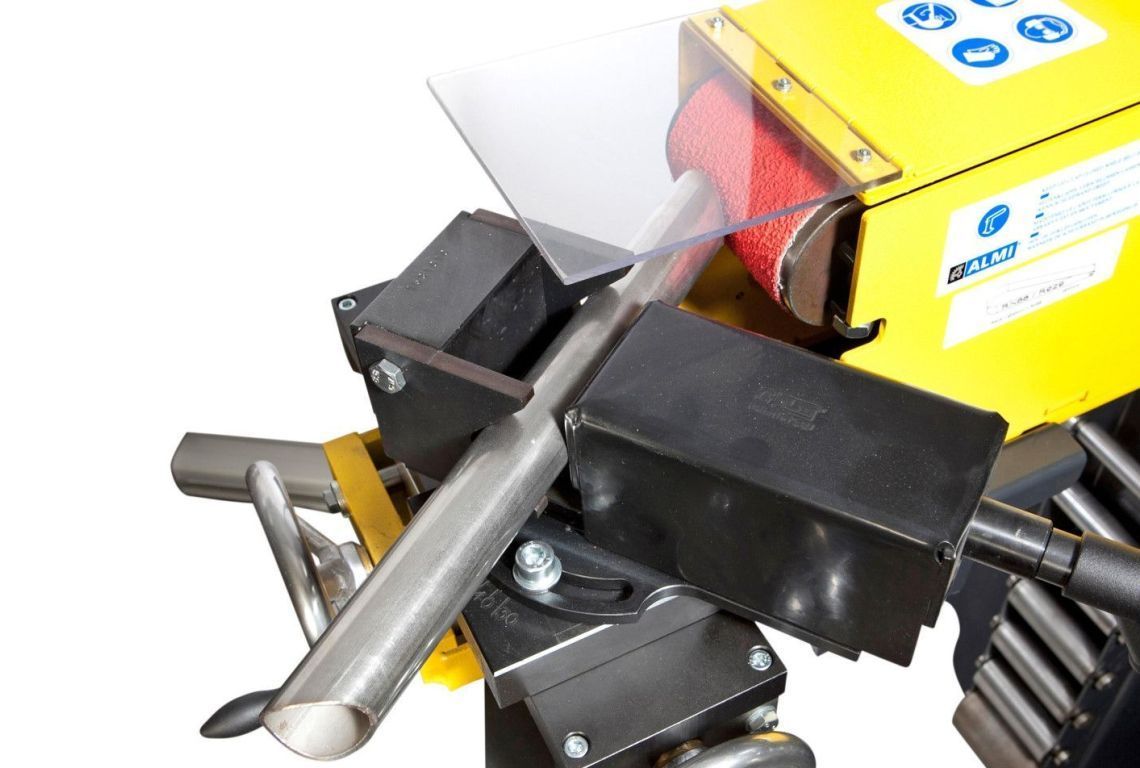

There are two versions of the 100 series. The AL100U-01 is equipped with lever operation. The AL100U-02 is equipped with two hand wheels or a lever. Both options are available on the machine. With the AL100U-01 and AL100U-02, you can grind material from ø20 to ø76.1 mm. The cross support and the carriage with a rotating clamp are infinitely adjustable. All tube profiles can be ground out at any desired angle from 30° to 90°. The AL100U-01 / 02 grinds square, rectangular and round pipes with different wall thicknesses and is suitable for all common types of material. The grinding belt can be tensioned quickly, and grinding rollers can be changed in just a few seconds.

ALMI pipe grinders offer added value through the certainty of years of problem-free, accurate and fast pipe processing. Because ALMI pipe grinders are sold worldwide, this proves the guarantee of excellent quality products. ALMI also strives for the continuity of product development processes and innovations. To provide you with the latest and best-developed pipe grinders at all times.

Weight 190220 kg
Motor 3KW
Belt speed 30 meter p/sec./2800 rpm
Belt size 100x2000 mm
Grinding diameters 20,0 / 76,1 mm
Grinding angle 30° - 90°
Operation Lever and handwheel operation (AL100U-02), lever operation (AL100U-01)
Dimensions 1450x1150x650 mm

Download the pipe grinder and pipe notcher brochure

Brochure ALMI pipe grinders and pipe notchers.pdf
